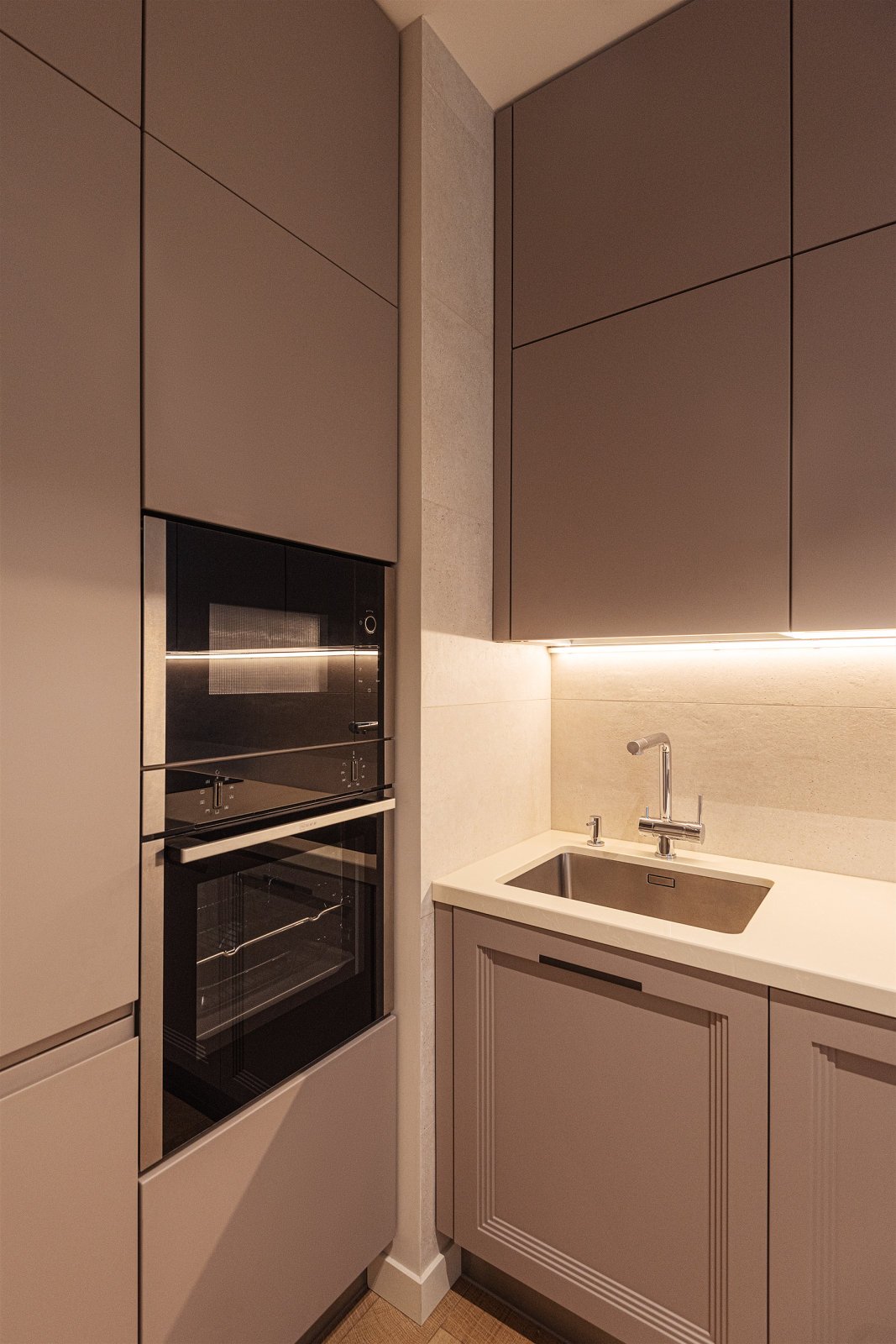

Light the shelf without exposing the source
Under-shelf lighting that stays clean from every viewing angle
Under-shelf lighting has little room for error. A strip that is too visible creates dots and glare; a profile that is too deep steals display space; poorly planned wiring interrupts an otherwise clean furniture detail.
HHY coordinates the strip, aluminum profile, diffuser, driver and leads around the shelf depth, material and viewing position. The goal is a repeatable assembly for retail fixtures, cabinets and furniture—not a loose collection of components.
Start with the application constraints
The right system is selected from the visual target, mounting detail, electrical limits and repeat-installation requirements.
Visible LED Dots
Match LED density, profile depth and diffuser transmission to normal viewing distance.
Uneven Shelf Light
Select mounting position and beam direction around shelf depth and merchandise height.
Glare at Eye Level
Recessed, angled or shielded profiles keep the bright source outside normal sight lines.
Difficult Wiring
Pre-cut leads and planned wire exits reduce assembly time and installation errors.
Recommended configuration starting points
Use these as engineering starting points, then confirm the complete assembly in a sample.
| Project priority | Recommended starting point | What HHY confirms |
|---|---|---|
| Clean continuous line | High-density SMD or COB strip | Dot visibility, diffuser and profile depth |
| Accurate merchandise color | High-CRI single color | CRI/R9, CCT tolerance and batch consistency |
| Very shallow detail | Narrow PCB or mini-cut strip | Cut interval, heat and connector clearance |
| Adjustable scenes | Tunable white or dimmable strip | Driver, control protocol and wiring |
Recommended product configurations
These product families narrow the specification; final voltage, power, dimensions and accessories are matched to the project.
From project brief to repeatable assembly
Develop a shelf-lighting kit that installers can repeat
- Review the application: dimensions, materials, viewing position, cable routes and service access.
- Define the target: brightness, CCT, CRI, uniformity, glare and control behavior.
- Build the system: light engine, profile or enclosure, driver, wiring and mounting accessories.
- Prototype and verify: check appearance, temperature, weather exposure where relevant, and installation sequence.
- Prepare for repetition: lock cut lengths, leads, labels, packaging and production documentation.
What can be customized
HHY focuses on the variables that determine whether the system fits, performs and repeats reliably.
Light & Electrical
CCT, CRI, LED density, power, voltage, cut interval and dimming behavior.
Mechanical Fit
PCB width, profile or silicone shape, diffuser, wire exit, clips and exact cut lengths.
Project Kit
Pre-cut leads, connectors, drivers, controls, labels and project-specific packaging.
Useful next step
Move from application intent to a buildable specification
This page explains the project logic. Compare the relevant product families in our Products hub, or review the related Cabinet & Furniture Lighting Solution when furniture integration is part of the scope.
Under-shelf LED strip lighting FAQ
How can visible dots be avoided?
Use suitable LED density, profile depth and diffuser transmission, then validate the complete optical stack in a shelf sample.
Where should the strip be mounted?
Front, center, rear and angled positions create different shadows and glare. Choose after considering shelf depth and viewing height.
Can the system be supplied pre-cut?
Yes. Confirmed lengths, leads, connectors, profiles and drivers can be prepared as labeled installation kits.
Bring us the application, not only a wattage
Plan an under-shelf lighting detail that installs cleanly
Send the shelf drawing, materials, viewing position and target effect. HHY will translate them into a buildable strip, profile, wiring and driver configuration.
